Product Description :
| Model | HNA2436 | Max.size | 2440x3660 |
| Min.size | 100x300 | Thickness range | 4 -19 |
| Productivity | 16-18 Batch /h | Power | 400KVA |
The main features:
1. The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.
2. Equal three phase power consumption during automatic heating up period; avoiding phase no-equal during no-heating period automatically.
3. The fine-adjustment for oven temperature could be achieved by fine-adjusting the temperature of every heating element.
4. The production process, temperature, time, air pressure, etc could be recorded. Therefore, testing production could be saved and production stability could be improved. Also, the production state in different batches could be tracked.
5. The machine has the history record and printing function. When glass come out from the oven, the computer will record the control parameters automatically for reference in future or pint them out.
6. Powerful operation prompt facility; if there is any wrong operation or fault, the dialog box will be called out to give you help.
HN Glass features leading convection technology, utilizing high-temperature air from the furnace's heating section to create precise convection on the glass surface. This ensures uniform tempering and optimal results, especially for Clear glass and soft-coated (Low-E) glass.

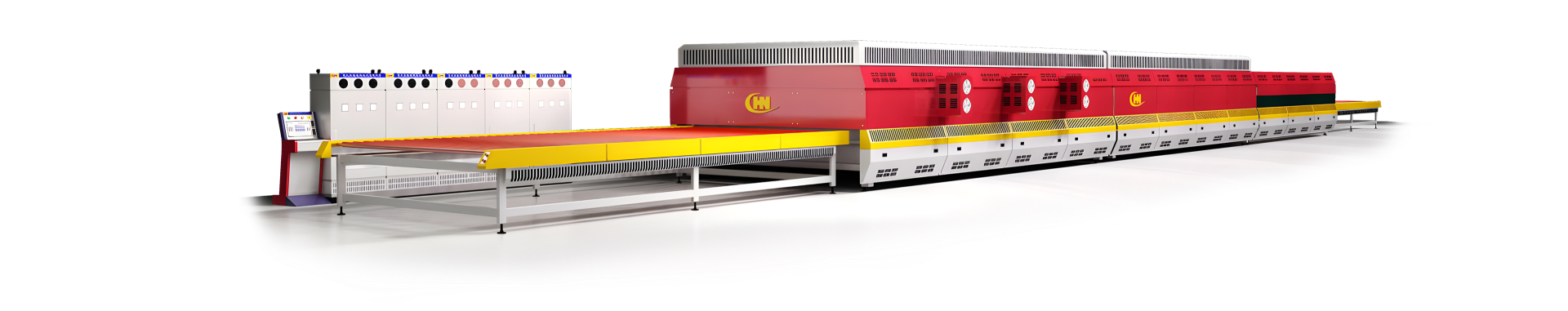

Glass Can Be Tempered by flat glass tempering furnace:
On/Off-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc
